XYM20Y-630/3300
Clicks£º21
DZ20Y(XYM20) series molded case circuit breakers
DZ20Y (XYM20) series molded case circuit breaker is suitable for AC 50HZ, rated current from 16A to 630A, rated insulation voltage 660V, rated working voltage of 380 (400) and the following circuit, the series of circuit breakers for power distribution in general, but also can be used as motor protection, under normal circumstances, the circuit breaker can be as infrequent line conversion and motor were infrequent start with.
Product performance standards:GB14048.2 IEC60947.2

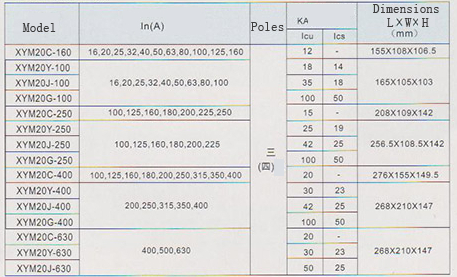

main technical parameters
